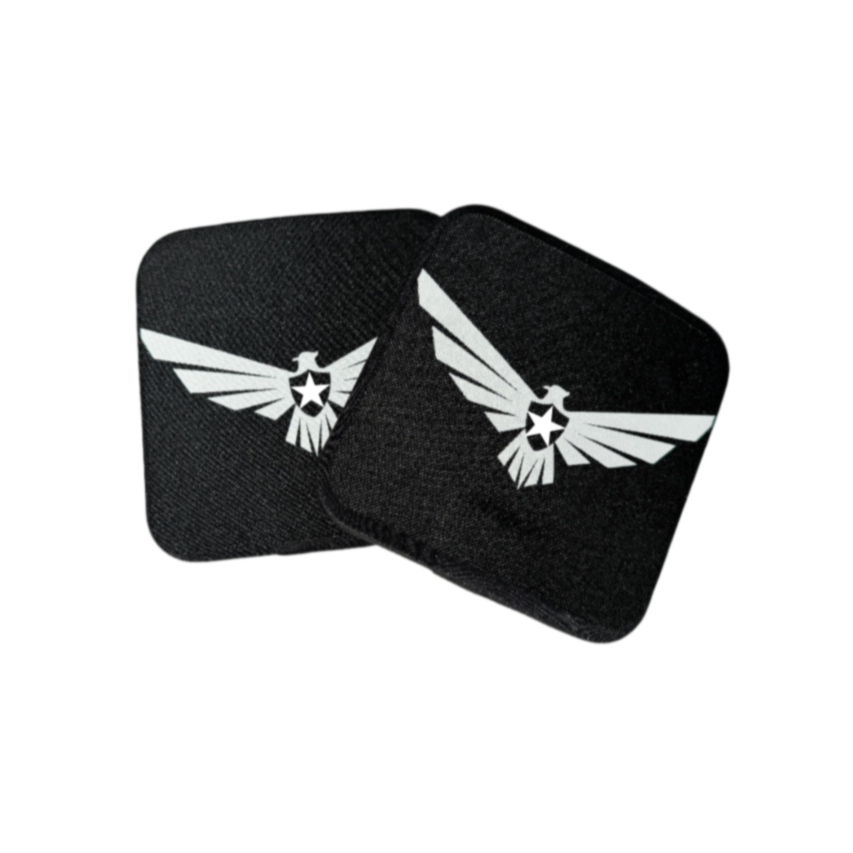

Set of (2) RF2 RF3 Ceramic Armor Edge-to-Edge Side Plates
Set of (2) RF2 RF3 Ceramic Armor Edge-to-Edge Side Plates
Couldn't load pickup availability
Ballistics Test Reports
Ballistics Test Reports
Key Features:
- RF3 standalone protection
- RF2 standalone protection
- True edge-to-edge ceramic coverage - No foam perimeters or reduced coverage zones, just continuous ceramic protection
- 6"x6" size - Standard side plate dimensions fit most carriers with side plate pockets
- Lightweight design - Approximately 3 pounds per plate for manageable weight addition
- 99%+ pure alumina ceramic - Superior ceramic material provides reliable ballistic performance
- Single-curve design - Contoured profile conforms to your body for improved comfort
- Crack arresting technology - Aramid and carbon fiber layers control ceramic fragmentation
- Made in the USA - Manufactured with proprietary ARMORFILM™ adhesives and high-quality materials
Technical Specifications:
| Product Type | 2-plate set (left and right side plates) |
| Protection Level | RF3 (Level IV) / RF2 (Level III+) standalone |
| Size | 6" x 6" |
| Weight per plate | Approximately 3 pounds |
| Thickness | 1" |
| Ceramic Material | 99%+ pure alumina |
| Coverage | True edge-to-edge ceramic |
| Backing Material | UHMWPE (Ultra-High-Molecular-Weight Polyethylene) |
| Curve Type | Single-curve |
| Adhesive | Proprietary ARMORFILM™ (100% USA source materials) |
| Crack Arresting | Aramid and carbon fiber layers |
| Outer Material | 1000 denier water-resistant nylon |
| NIJ Standard | 0101.07 RF3 |
| Manufacturing | Made in the USA with global materials |
Why Side Plates Matter:
Front and back armor plates protect your chest and back, but they leave your sides vulnerable to impacts from lateral angles. Side plates extend your armor coverage to protect vital organs including your liver, spleen, and kidneys from side impacts.
Carrier Compatibility:
These 6"x6" single-curve side plates fit most plate carriers that include side plate pockets.
Important Notes:
- Set includes 2 plates (left and right sides)
- 6"x6" size fits most carriers with side plate pockets
- Approximately 3 pounds per plate
- True edge-to-edge ceramic coverage with no foam perimeters
- Single-curve design for improved comfort and fit
Resisted Threats
Per NIJ Standard 0101.07 — select your protection level at checkout:
RF3 standalone resists:
- .30-06 M2 AP
- 5.56mm M855A1
- 5.56mm M855
- 7.62x51mm M80A1
- 7.62x51mm M80
- 7.62x39mm MSC
- 5.56mm M193
- 9mm Luger FMJ RN
- .44 Magnum JHP
- .357 Mag JSP
RF2 standalone resists:
- 5.56mm M855
- 7.62x51mm M80
- 7.62x39mm MSC
- 5.56mm M193
- 9mm Luger FMJ RN
- .44 Magnum JHP
- .357 Mag JSP
