Gilliam Arms

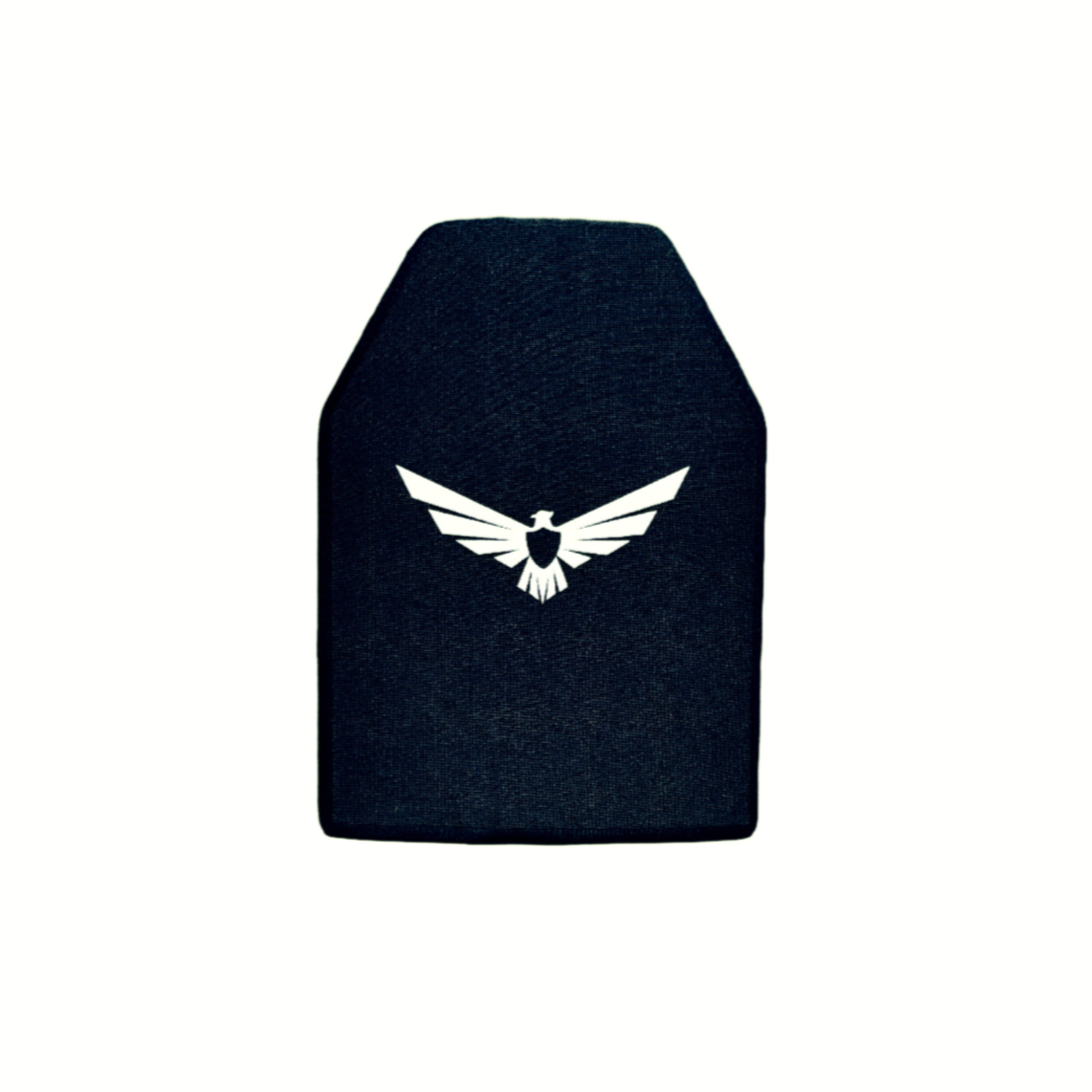

Model 9490: RF3 Mosaic Ceramic Armor Plate
Model 9490: RF3 Mosaic Ceramic Armor Plate
Regular price
$179.00 USD
Regular price
Sale price
$179.00 USD
Quantity
Couldn't load pickup availability
Ballistics Test Reports
Ballistics Test Reports
Maximum protection in a proven mosaic design.
Key Features
- RF3 standalone protection
- 6.85 pounds
- 9.5" x 12"
- Superior mosaic configuration (99%+ pure alumina)
- Multi-hit capable
- 10mm silicone rubber edge
- Crack arresting technology
- Made in USA
- 10-year warranty
Technical Specifications:
| Model | 9490 |
| Protection Level | RF3 (Level IV) standalone |
| Size | 9.5" x 12" (SAPI Edge to Edge) |
| Weight per plate | 6.85 pounds |
| Thickness | .95" |
| Ceramic Material | 99%+ pure alumina mosaic |
| Ceramic Configuration | Mosaic tile array |
| Coverage | Edge-to-edge ceramic (left/right) |
| Backing Material | UHMWPE (Ultra-High-Molecular-Weight Polyethylene) |
| Curve Type | Single-curve |
| Adhesive | Proprietary ARMORFILM™ (Made in USA) |
| Crack Arresting | Aramid and carbon fiber layers |
| Outer Material | 1000 denier water-resistant nylon |
| NIJ Standard | 0101.07 RF3 |
| NIJ 0101.07 Drop Tested | Yes |
| Manufacturing | Made in the USA |
| Warranty | 10 years on ballistic materials |
Resisted Threats
Per NIJ Standard 0101.07:
RF3 standalone resists:
- .30-06 M2 AP
- 5.56mm M855A1
- 5.56mm M855
- 7.62x51mm M80A1
- 7.62x51mm M80
- 7.62x39mm MSC
- 5.56mm M193
- 9mm Luger FMJ RN
- .44 Magnum JHP
- .357 Mag JSP
