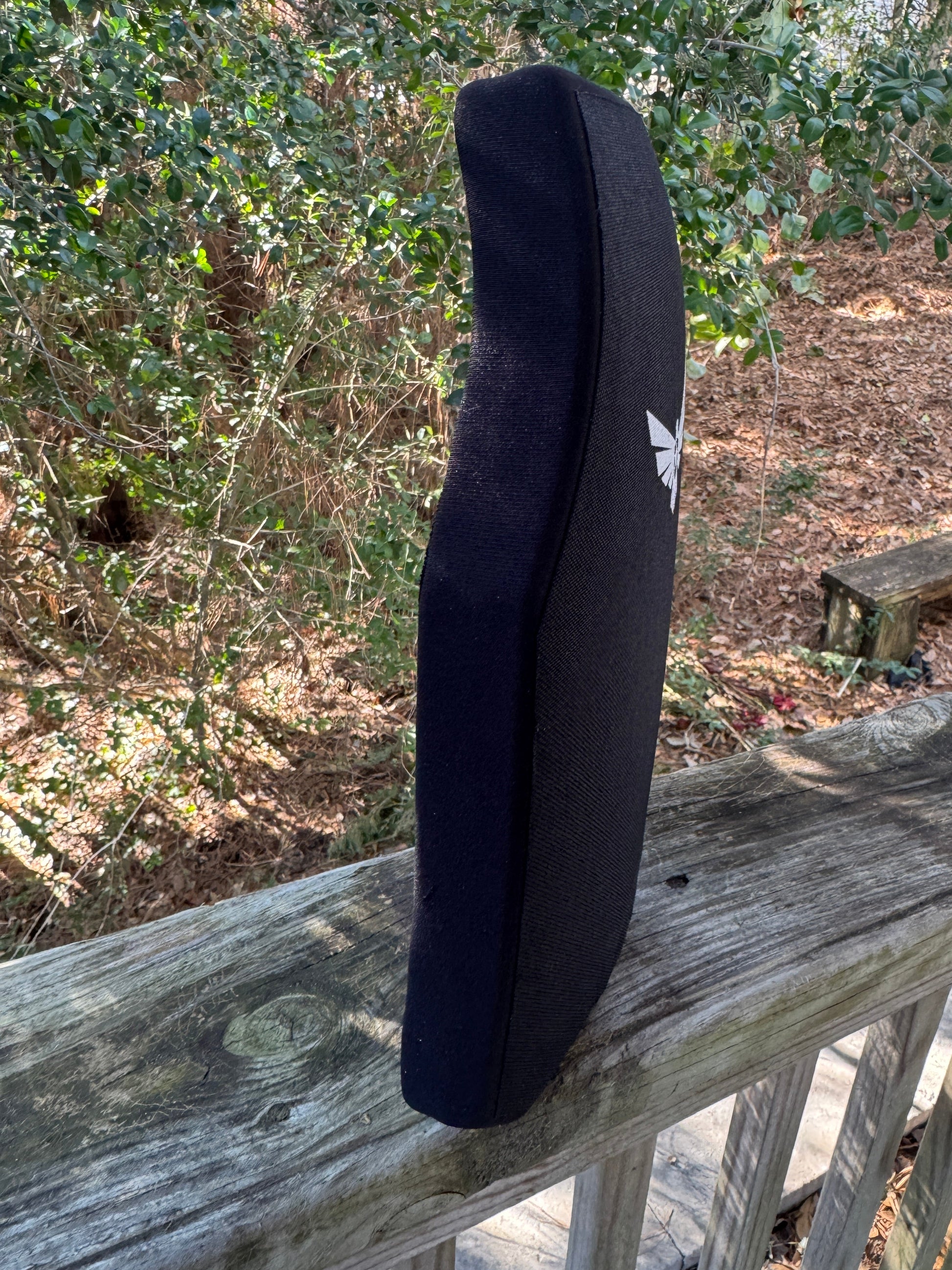

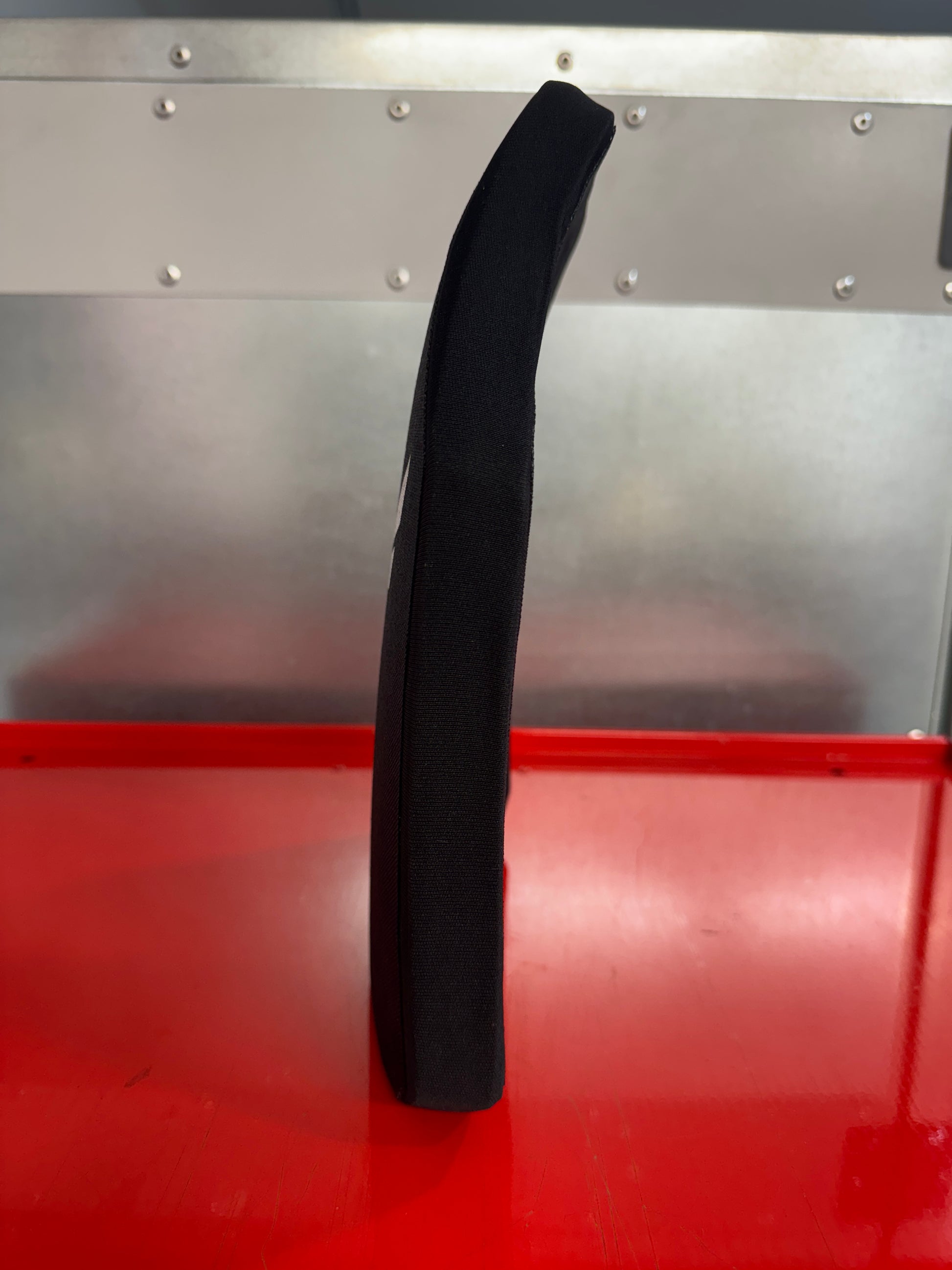

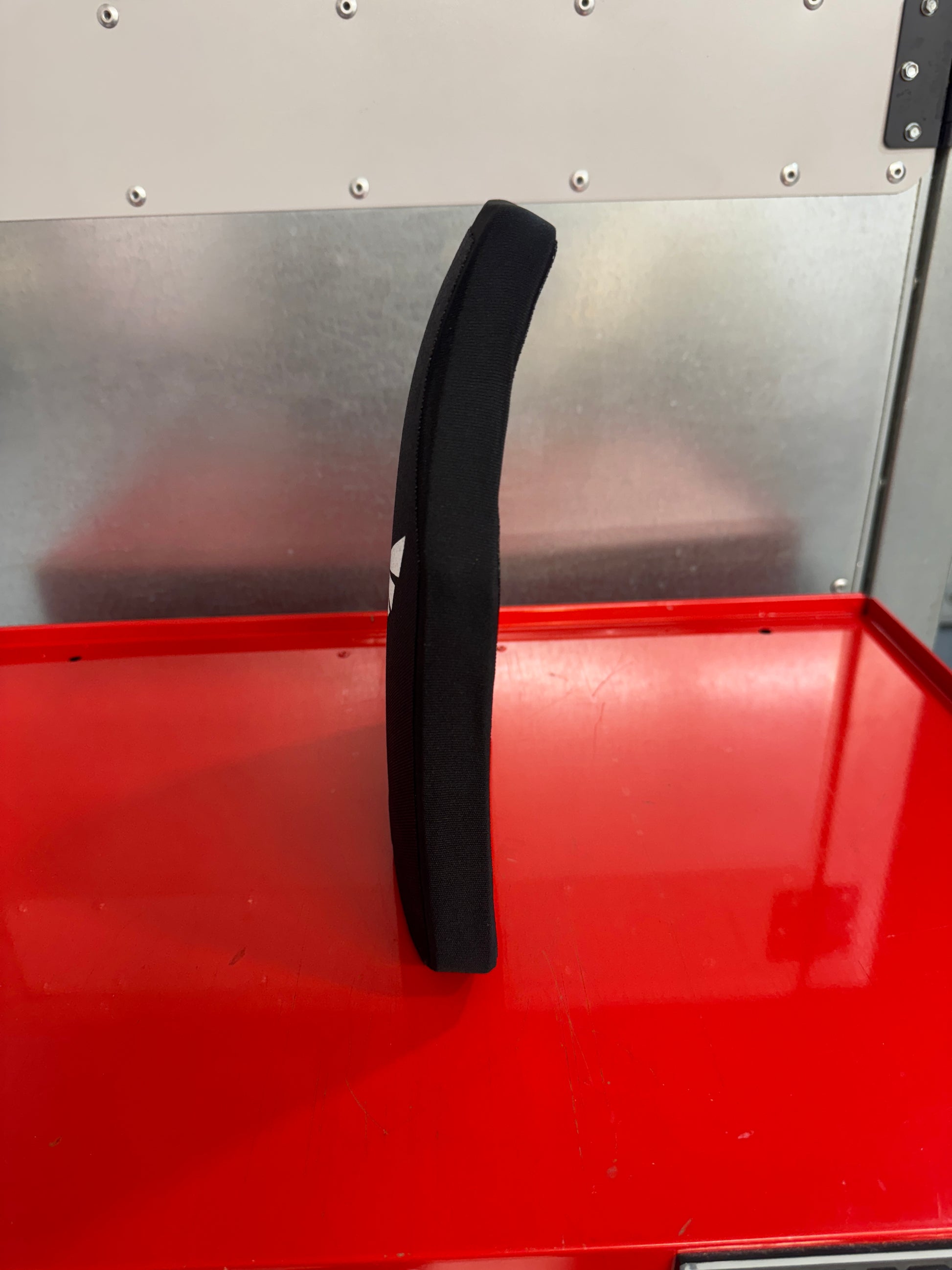

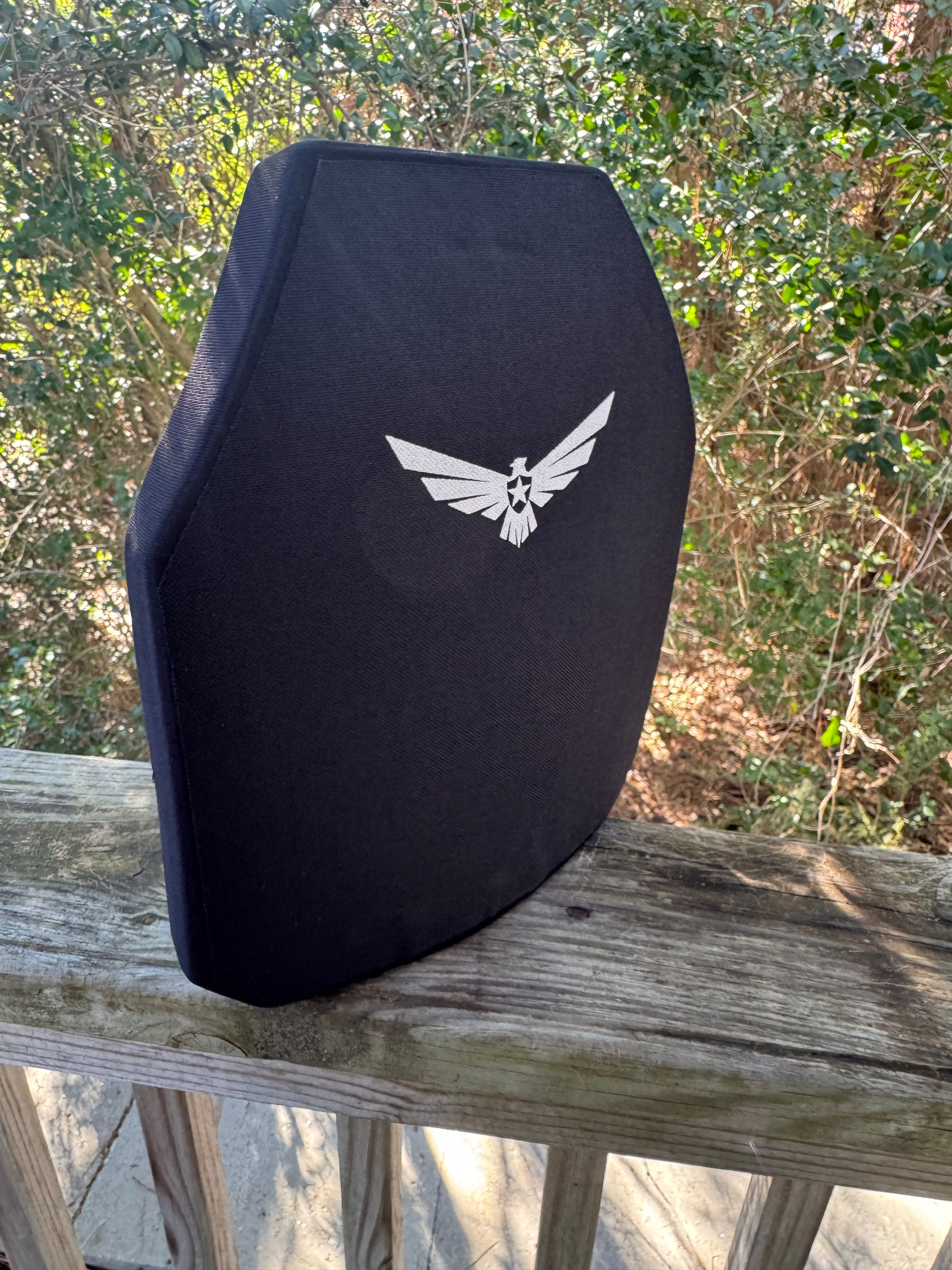

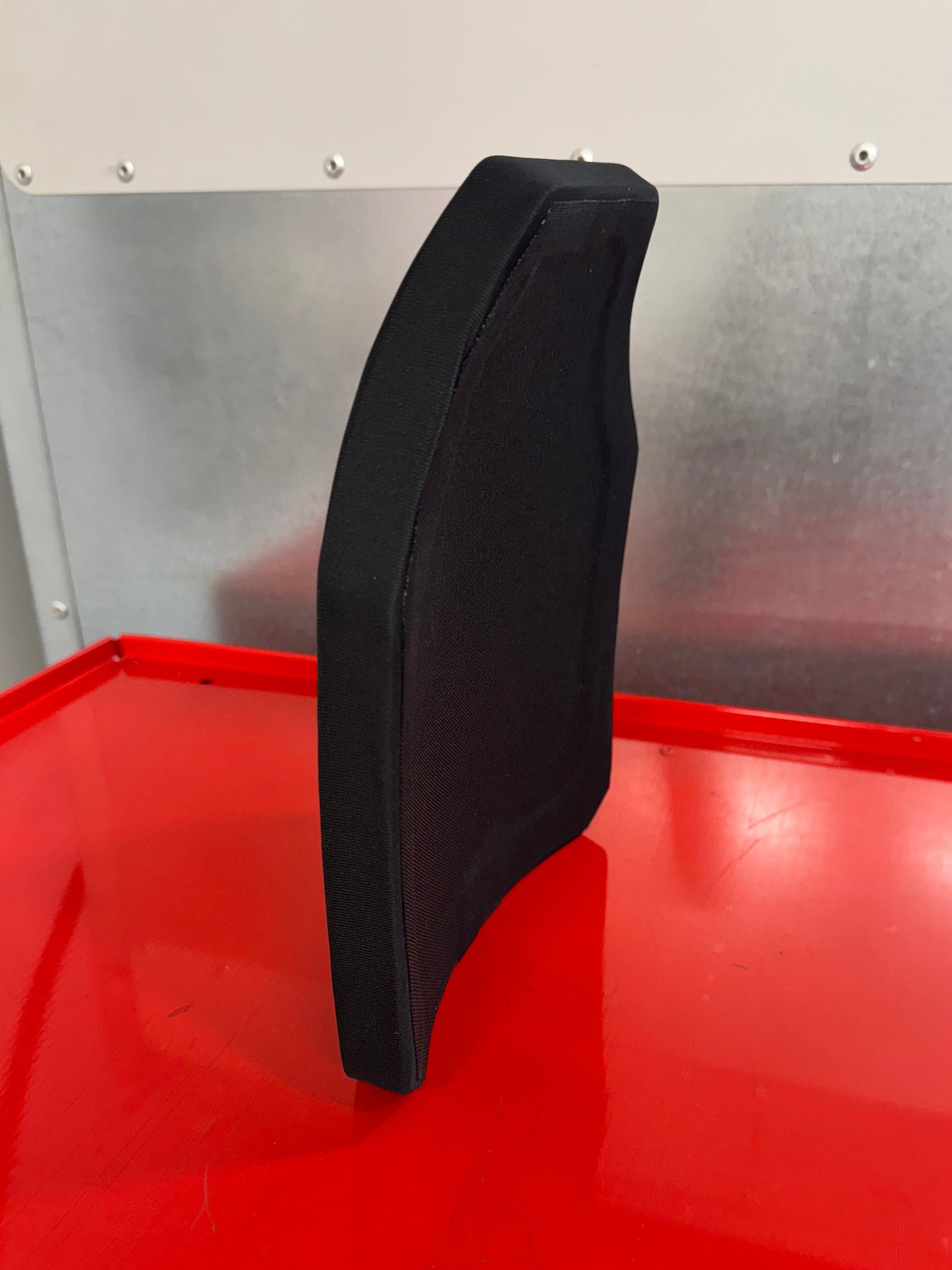

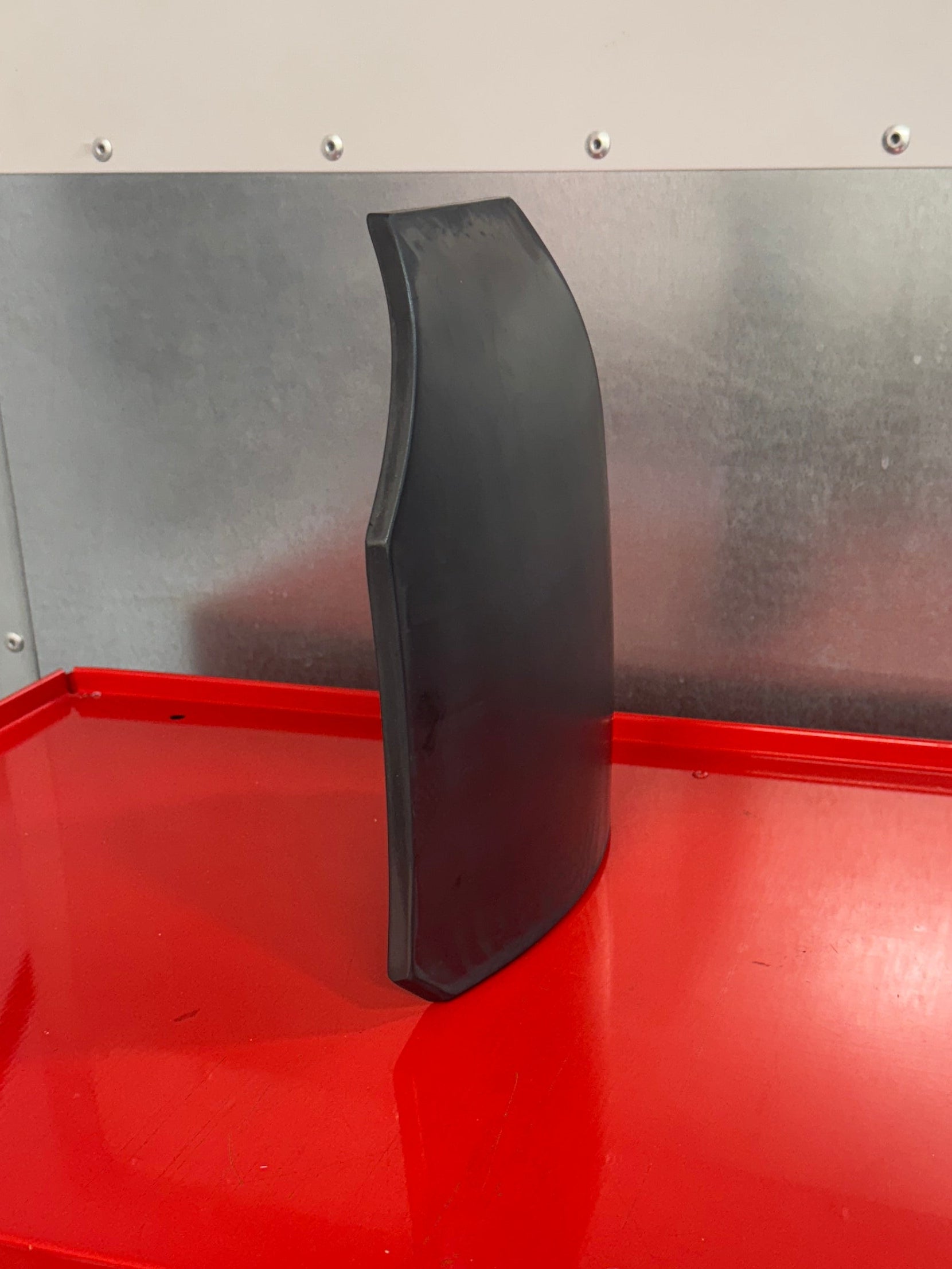

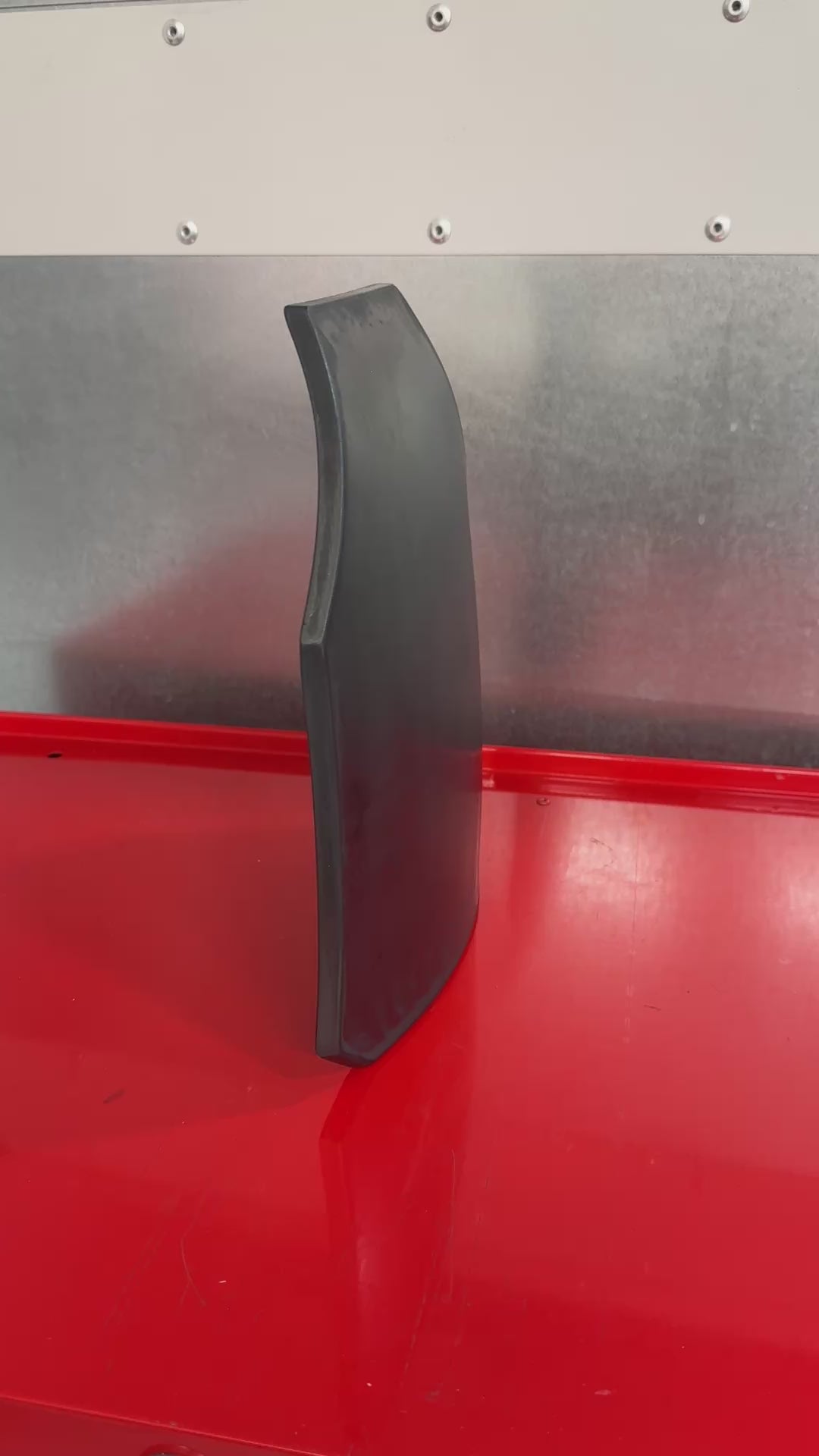

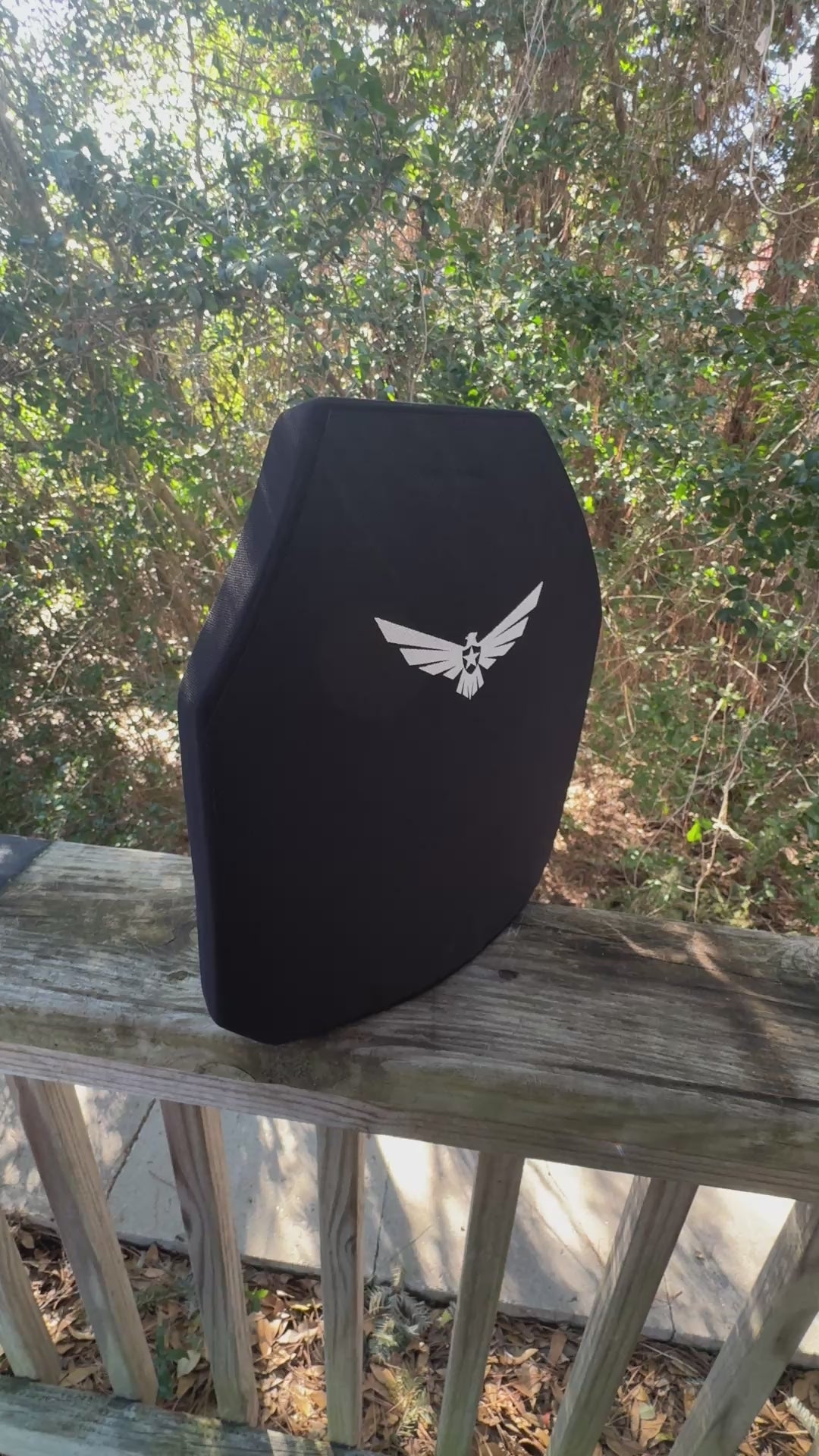

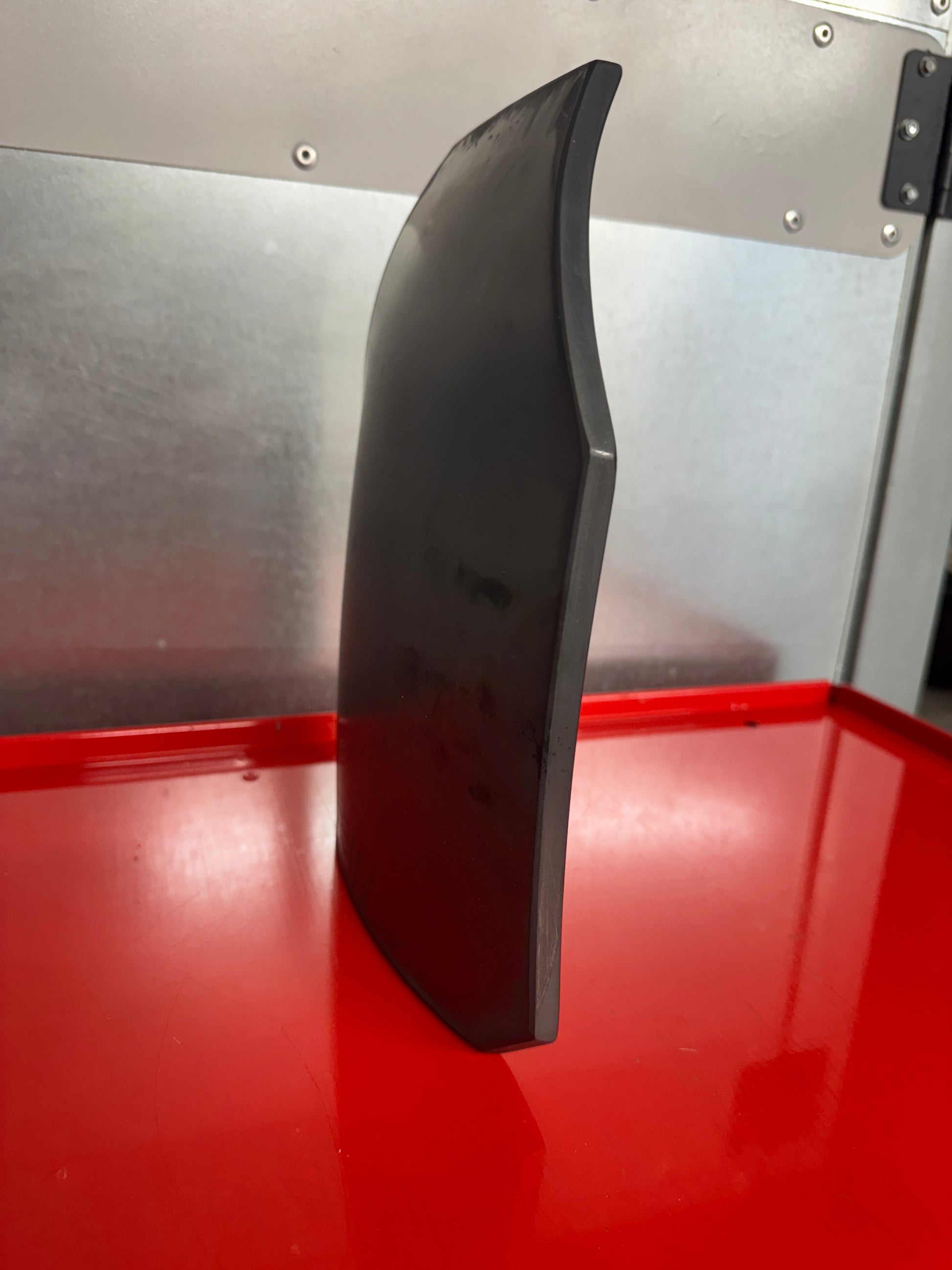

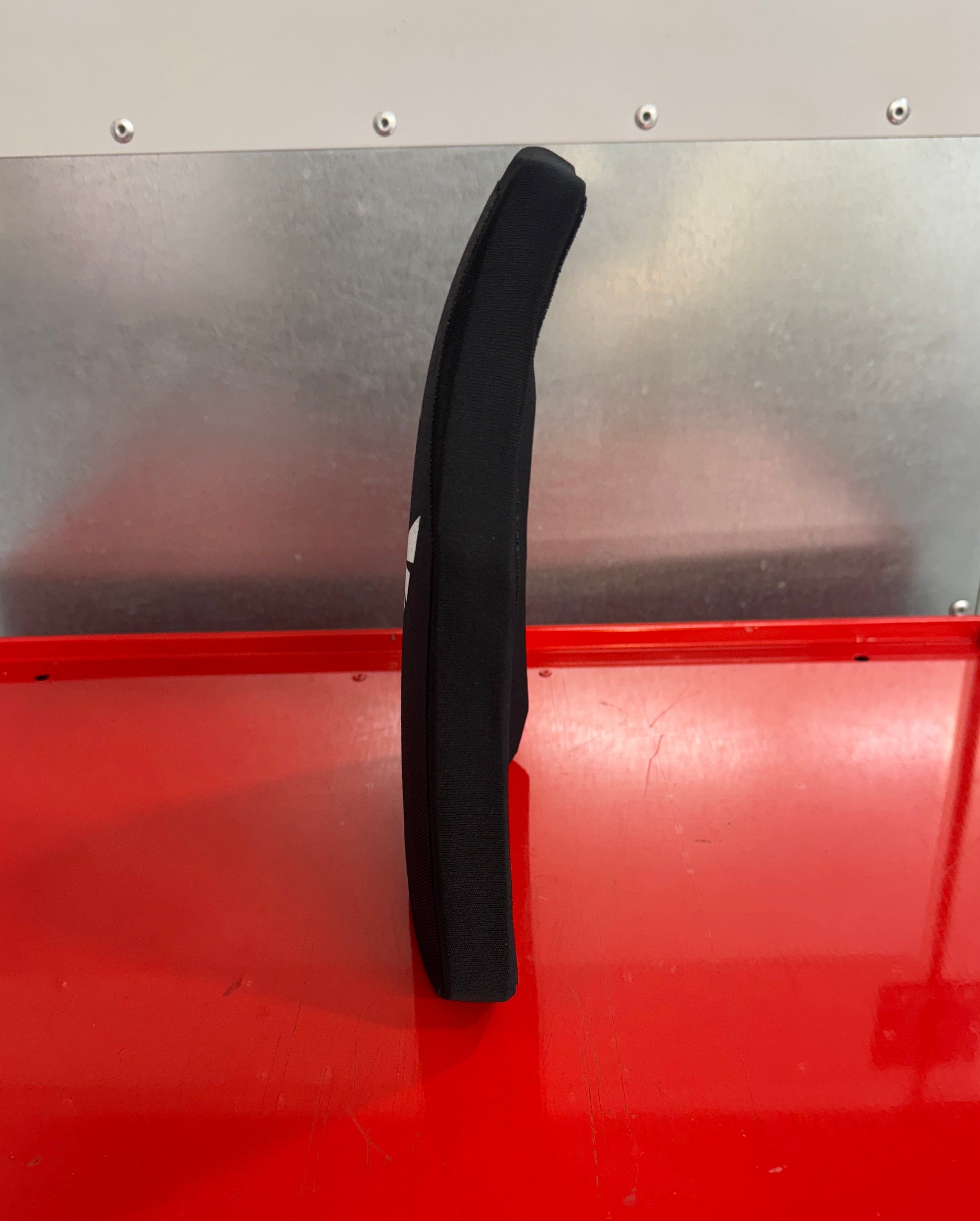

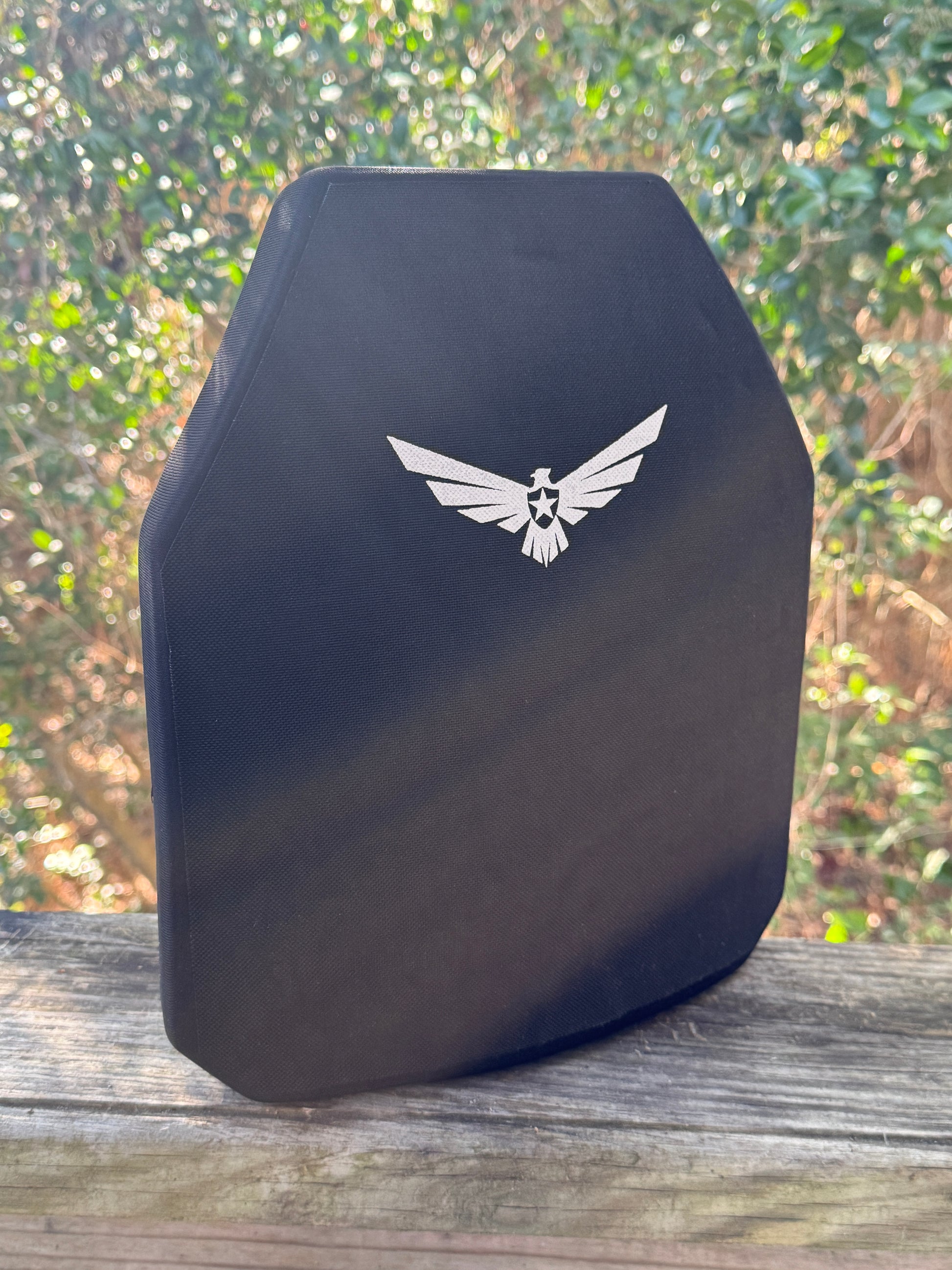

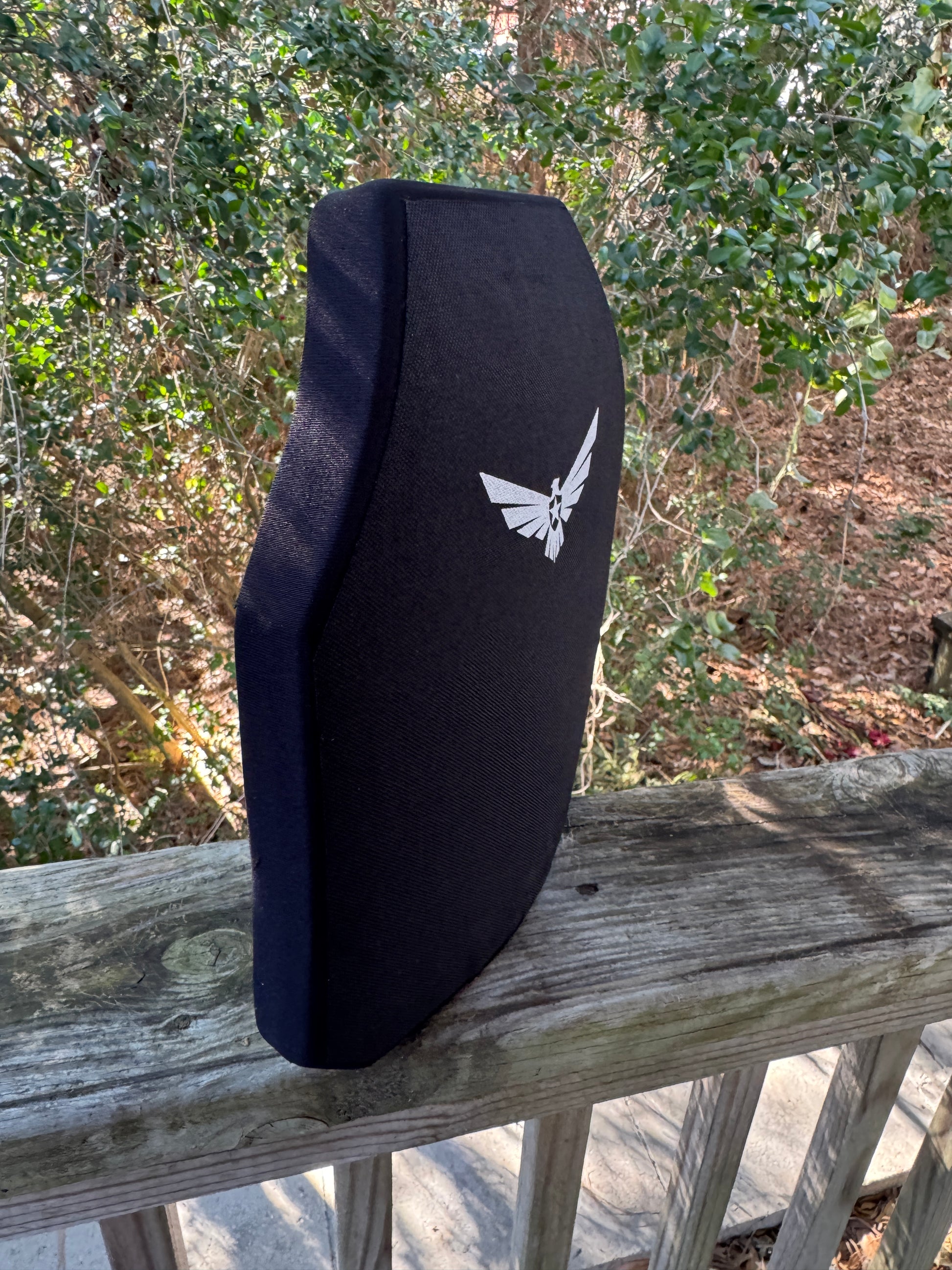

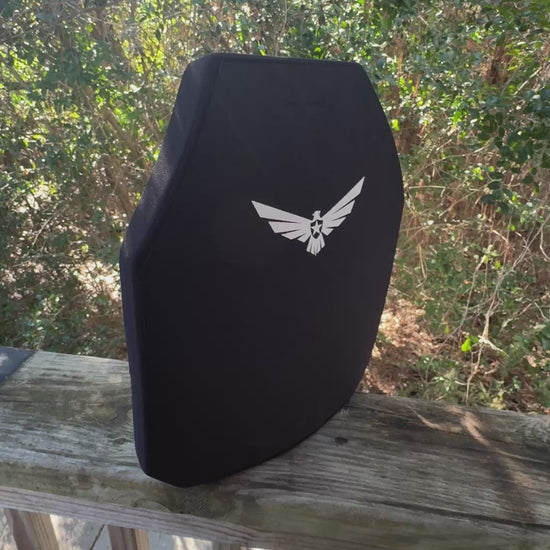

Model 9969 RF3 (Level 4) Multi-Curve Ceramic Armor Plate - Lightweight Tungsten Protection
Model 9969 RF3 (Level 4) Multi-Curve Ceramic Armor Plate - Lightweight Tungsten Protection
Regular price
$499.00 USD
Regular price
Sale price
$499.00 USD
Quantity
Couldn't load pickup availability
Ballistics Test Reports
Ballistics Test Reports
Key Features and Benefits
- RF3 standalone protection

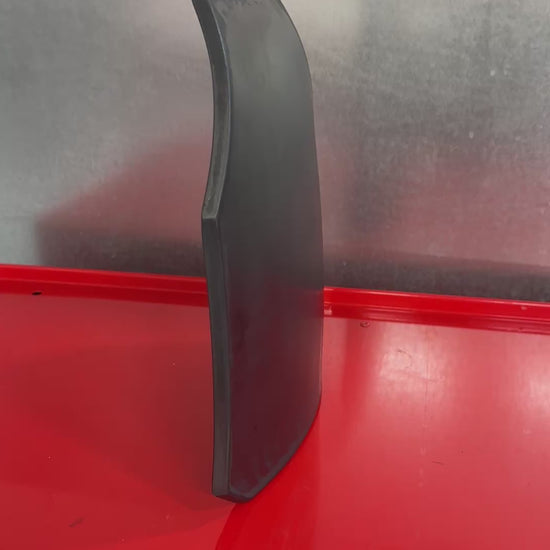

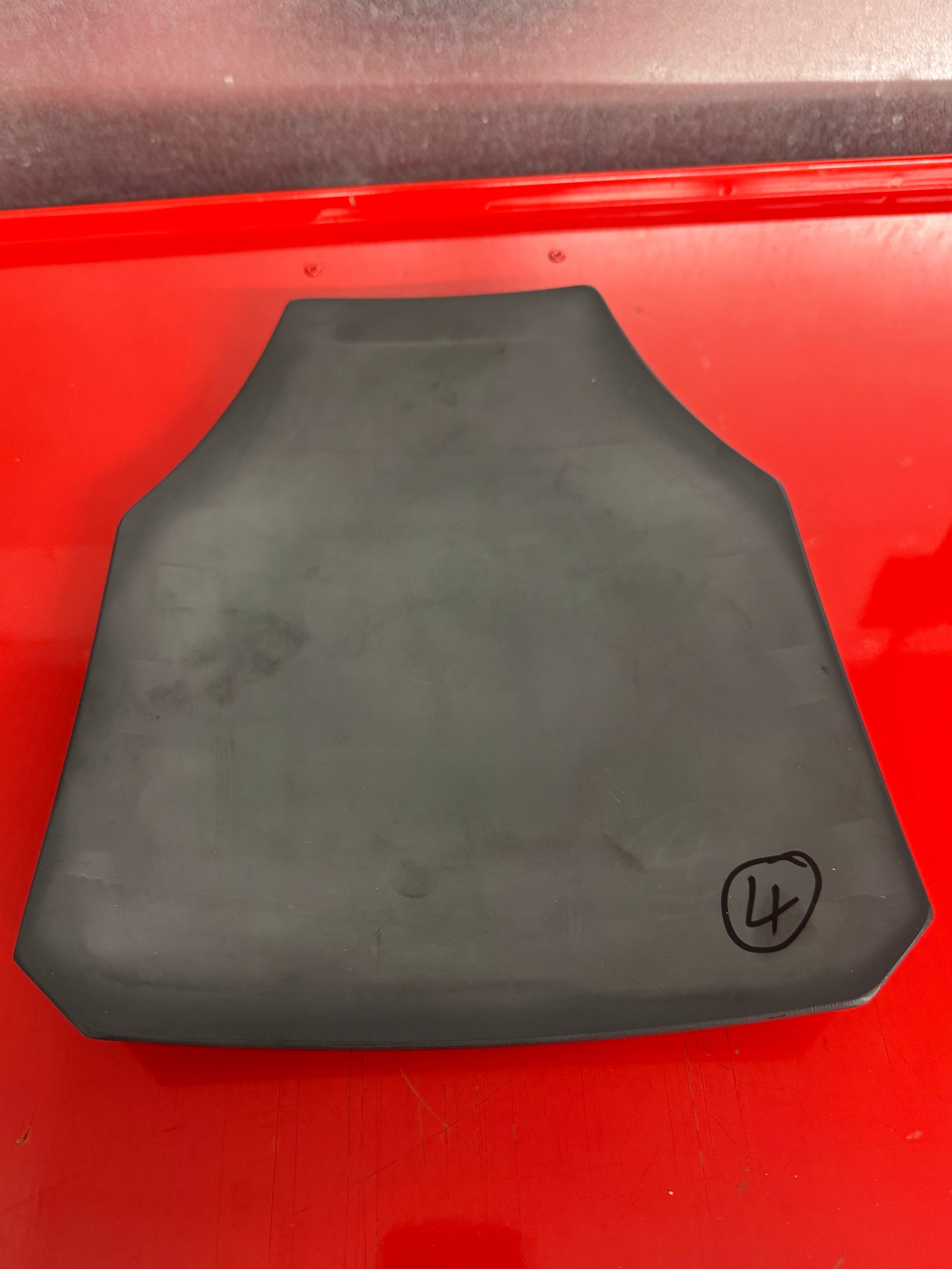

- SiC-TiB₂ strike face

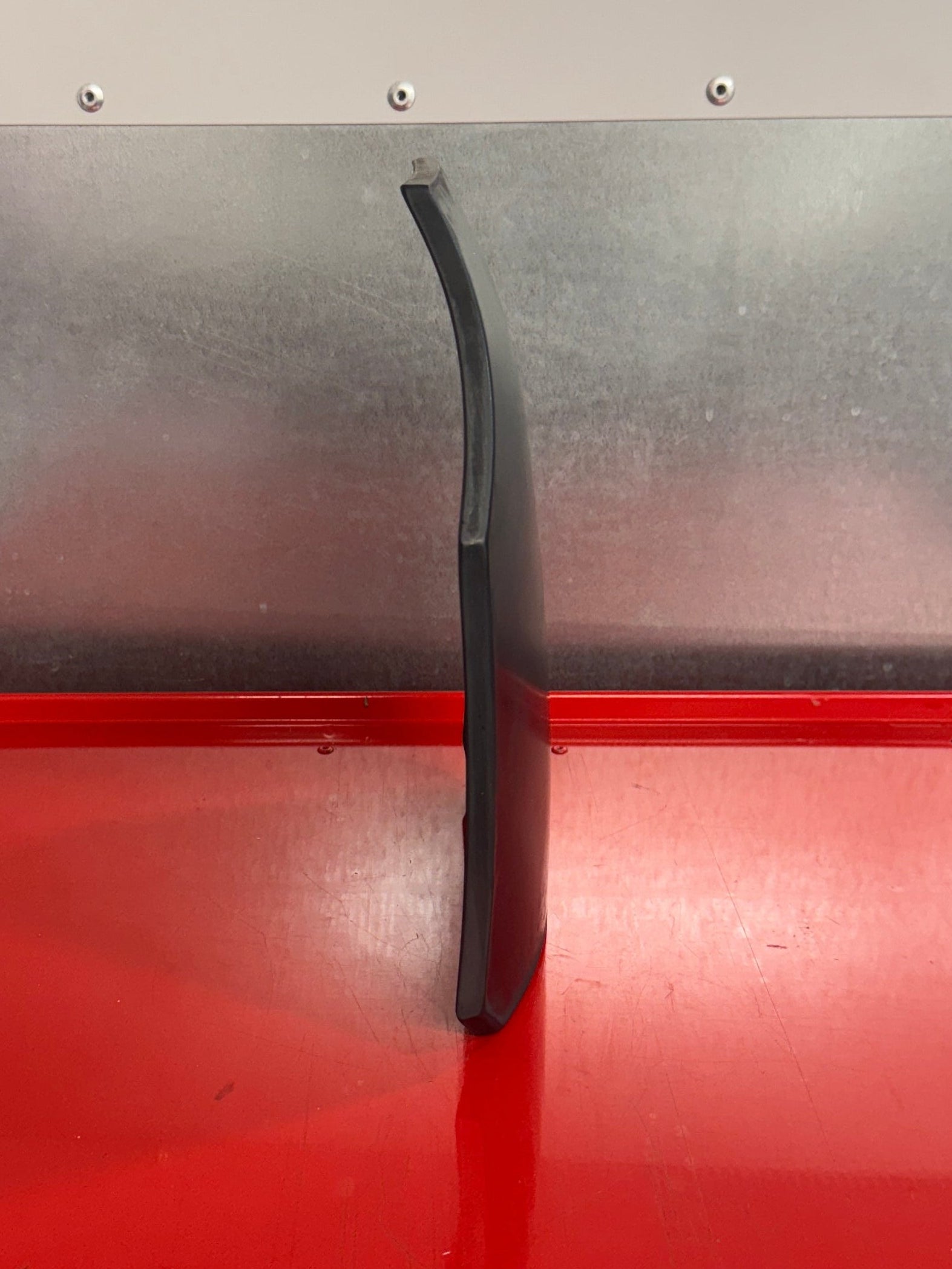

- Multi-curve design
- Lightweight construction
- NIJ 0101.07 standards
- Made in USA
- ARMORFILM™
- Edge-to-edge protection
Technical Specifications:
| Model | 9969 |
| Protection Level | RF3 (Level IV) standalone |
| Size | 9.9" x 11.9" (Shooter Edge to Edge) |
| Weight per plate | 5.5 lbs |
| Thickness | 0.9" |
| Ceramic Material | SiC-TiB₂ (Silicon Carbide - Titanium Diboride) |
| Ceramic Configuration | Monolithic |
| Coverage | True edge-to-edge high-performance ceramic |
| Backing Material | UHMWPE (Ultra-High-Molecular-Weight Polyethylene) |
| Curve Type | Multi-curve |
| Adhesive | Proprietary ARMORFILM™ (Made in USA) |
| Crack Arresting | Aramid and carbon fiber layers |
| Outer Material | 1000 denier water-resistant nylon |
| NIJ Standard | 0101.07 RF3 |
| NIJ 0101.07 Drop Tested | Yes |
| Manufacturing | Made in the USA |
| Warranty | 10 years on ballistic materials |
Resisted Threats
Per NIJ Standard 0101.07:
RF3 standalone resists:
- .30-06 M2 AP
- 5.56mm M855A1
- 5.56mm M855
- 7.62x51mm M80A1
- 7.62x51mm M80
- 7.62x39mm MSC
- 5.56mm M193
- 9mm Luger FMJ RN
- .44 Magnum JHP
- .357 Mag JSP
