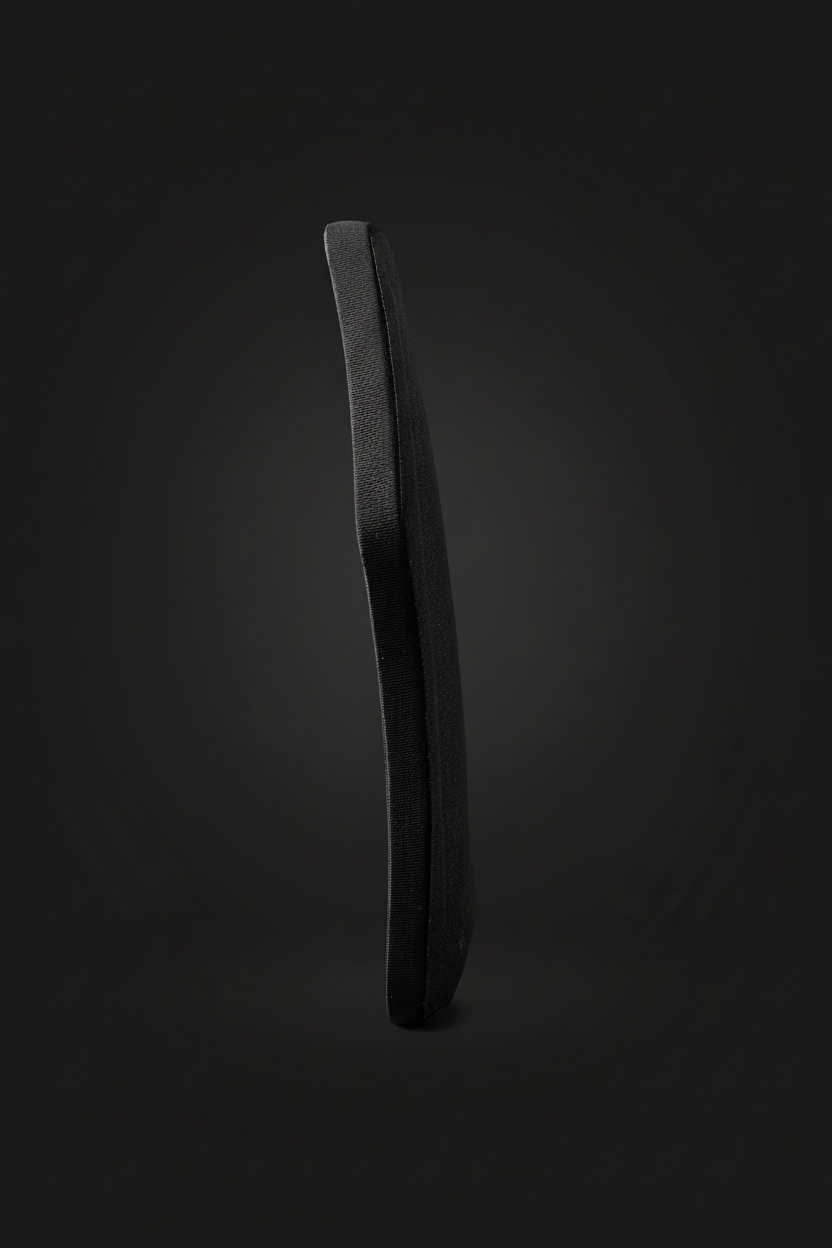

• GARMS 3 ICW RF3 armor plate
  • GARMS 3 ICW RF3 armor plate
  • GARMS 3 - Rooftop
1 3

Gilliam Arms

GARMS 3 SRT RF3

GARMS 3 SRT RF3

$149.00 USD
$299.00 USD $149.00 USD
Sale Sold out

Ballistics Test Reports

Key Features and Benefits

  • RF3 ICW protection (when used In Conjunction With Level HG2/3a soft armor)
  • RF2 standalone protection
  • RF1 standalone protection
  • HG2 standalone protection
  • No NIJ-rated drop protection (normal handling and drops without weight)
  • Full SAPI size and protection (10" x 12")
  • Thin, minimum profile
  • Lightweight (6 lbs)
  • Multi-curve design
  • NIJ 0101.07 ballistic standards
  • Made in USA with domestic and quality global materials
  • ARMORFILM™
  • Edge-to-edge protection

Technical Specifications:

Model GARMS 3 SRT RF3
Protection Level RF3 (Level IV) ICW Level 3a (HG2) soft armor / RF2 standalone / RF1 standalone / HG2 standalone
NIJ Standard 0101.07 RF3
NIJ 0101.07 Drop Tested Does not meet full NIJ drop tested protocols (normal handling only)
Size Full 10" x 12" SAPI
Weight 6 lbs
Thickness .7"
Curve Type Multi-curve
Backing Material High quality ballistic materials
Adhesive 100% USA ARMORFILM™
Coverage Edge-to-edge
Manufacturing Made in USA with domestic and quality global materials

Resisted Threats

Per NIJ Standard 0101.07:

RF3 ICW resists (when used In Conjunction With HG2/3a soft armor):

  • .30-06 M2 AP
  • 5.56mm M855A1
  • 5.56mm M855
  • 7.62x51mm M80A1
  • 7.62x51mm M80
  • 7.62x39mm MSC
  • 5.56mm M193

Standalone resistance:

  • 5.56mm M855
  • 7.62x51mm M80
  • 7.62x39mm MSC
  • 5.56mm M193
  • 9mm Luger FMJ RN
  • .44 Magnum JHP
  • .357 Mag JSP
This plate requires HG2 (3a) soft armor behind it. Add your soft armor here to complete the system.
