Gilliam Arms
Model 1635: RF3 Multi-Curve Armor Plate
Model 1635: RF3 Multi-Curve Armor Plate
Couldn't load pickup availability
Model 1635
The Model 1635 is Gilliam Arms' flagship RF3 hard armor plate — built to defeat the most demanding rifle threats recognized under NIJ Standard-0101.07, including M2 AP armor-piercing ammunition.
Colonial Heritage
The "1635" plate commemorates the arrival of John Gillam and Thomas Gillam aboard the ship George in 1635, from Gravesend, England. This date marks the beginning of nearly four centuries of documented American heritage for the Gilliam family in colonial Virginia.
Key Features:
- RF3 standalone protection
- Low backface deformation
- Multi-curve ergonomic design
- Crown shot tested
- 99.7% ceramic purity
- Made in USA with domestic and quality global materials
- 10-year warranty

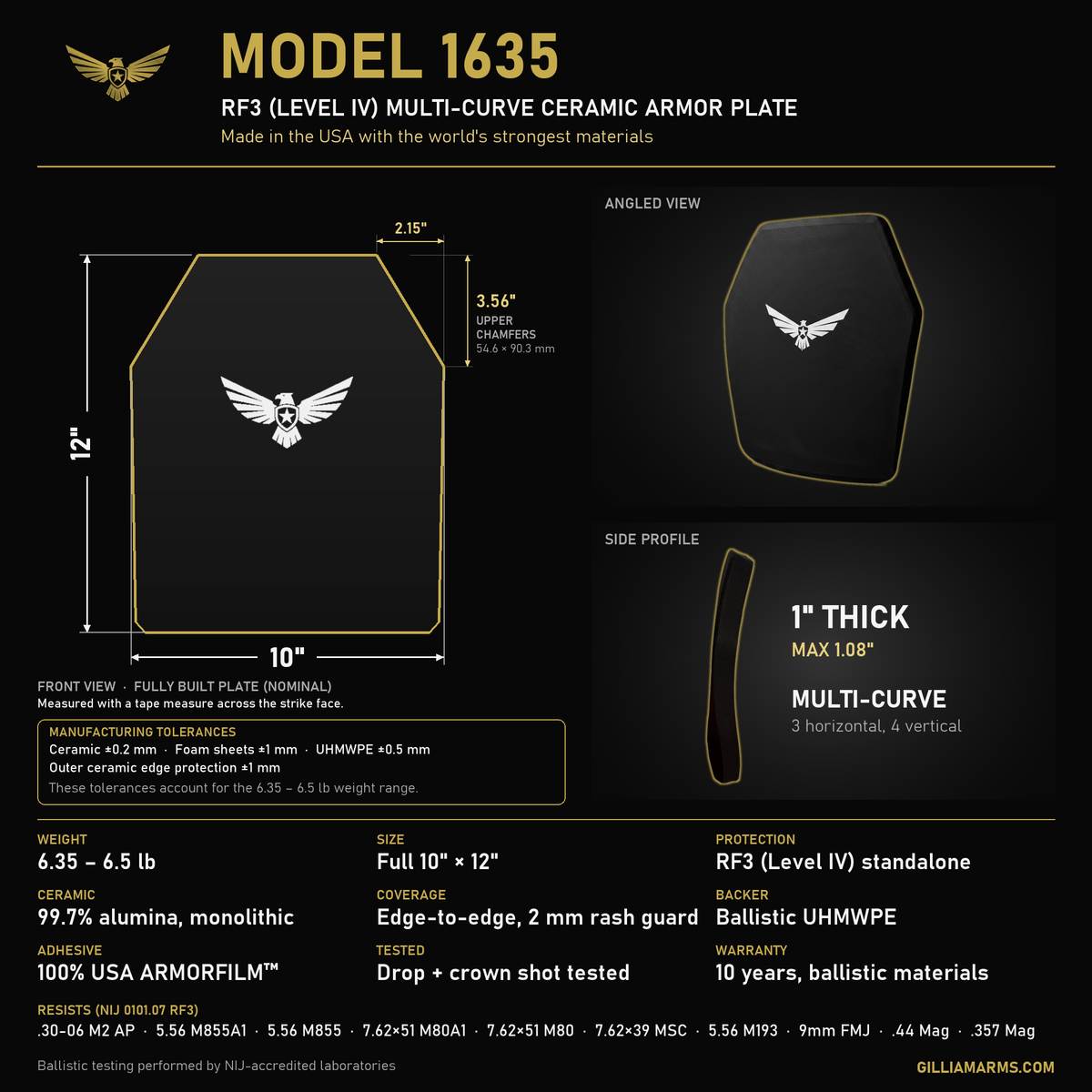

Technical Specifications:
| Model | Model 1635 RF3 |
| Protection Level | RF3 (Level IV) standalone |
| NIJ Standard | 0101.07 RF3 |
| NIJ 0101.07 Drop Tested | Yes |
| Size | FULL 10" x 12" with complete ceramic coverage |
| Weight per plate | 6.35 pounds |
| Thickness | 1" |

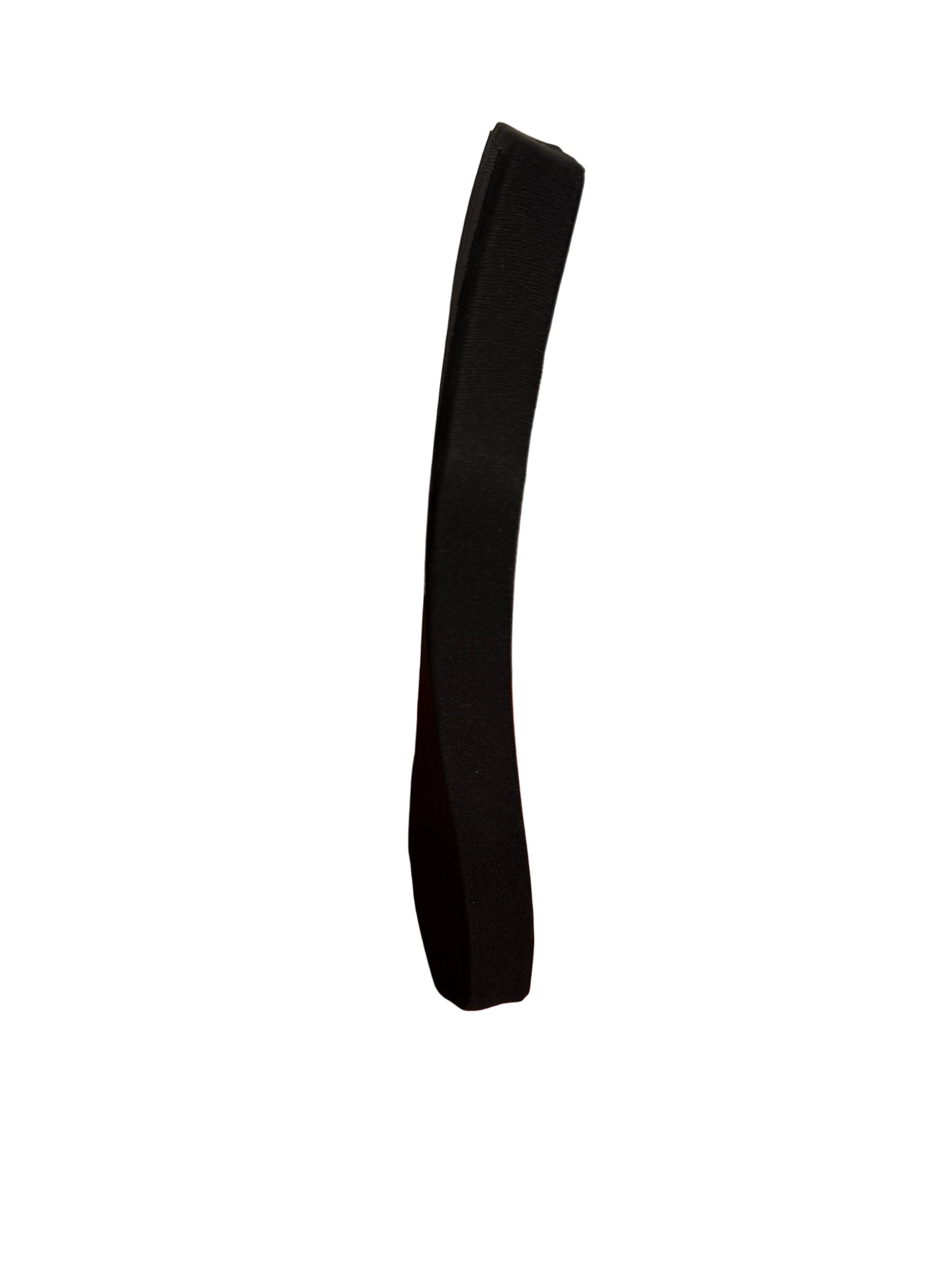

| Curve Type | Multi-curve (3 horizontal and 4 vertical) |
| Ceramic Material | Ultra-pure alumina monolithic |
| Coverage | Edge-to-edge ceramic with 2mm rubber rash guard |
| Backing Material | High quality ballistic UHMWPE materials |
| Adhesive | 100% USA ARMORFILM™ |
| Outer Material | Nylon |
| Manufacturing | Made in USA with domestic and quality global materials |
| Warranty | 10 years on ballistic materials |
Resisted Threats
Per NIJ Standard 0101.07:
RF3 standalone resists:
- .30-06 M2 AP
- 5.56mm M855A1
- 5.56mm M855
- 7.62x51mm M80A1
- 7.62x51mm M80
- 7.62x39mm MSC
- 5.56mm M193
- 9mm Luger FMJ RN
- .44 Magnum JHP
- .357 Mag JSP
